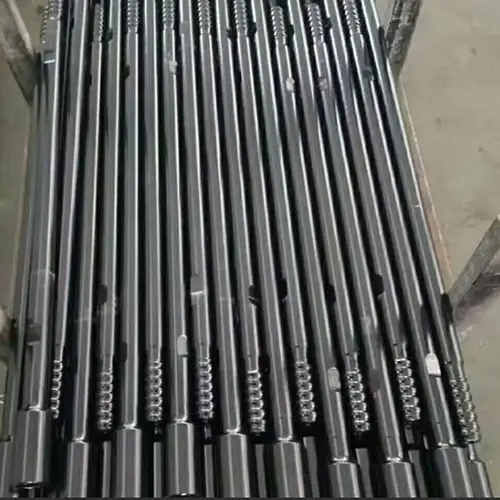

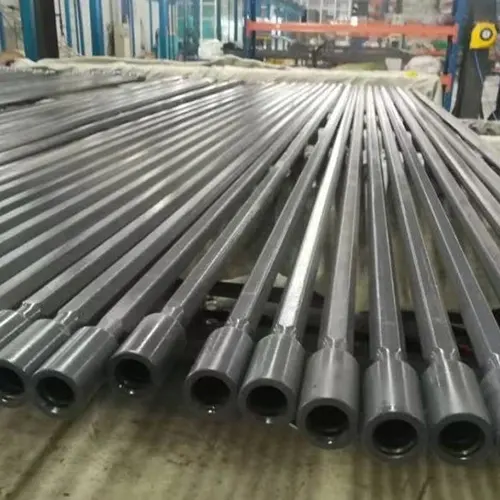

Top Hammer Drill Rods
- Diameter range: 28-60mm
- Thread types: R thread, T thread, S thread
- Material: Medium-carbon alloy steel
Request a Quote
Typical Applications
Underground mining drill rods:
Designed for use with rail-mounted pneumatic rock drills and fully hydraulic underground drilling rigs, these drill rods are widely applied in underground mining production drilling, medium-deep blast holes, rock bolting and support holes.

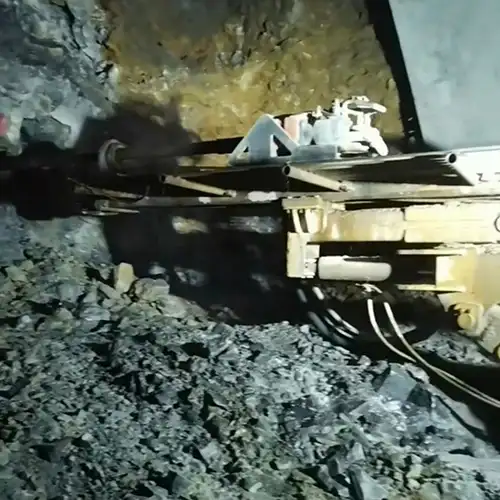

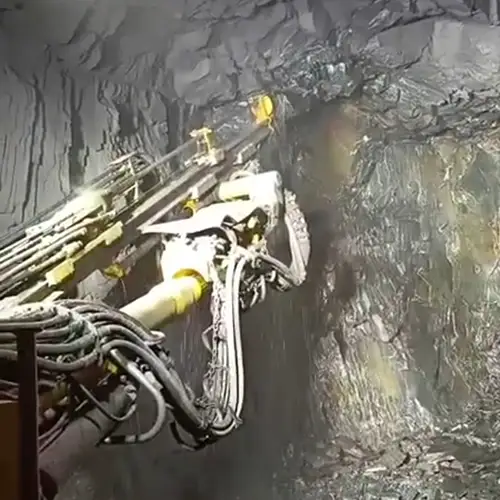

Tunneling and drifting drill rods:
Matched with fully hydraulic tunneling jumbos, these drill rods are used for drifting and blasting in large underground metal mines, railway and highway tunnels, hydropower diversion tunnels and underground powerhouse excavation.
Technical Specifications

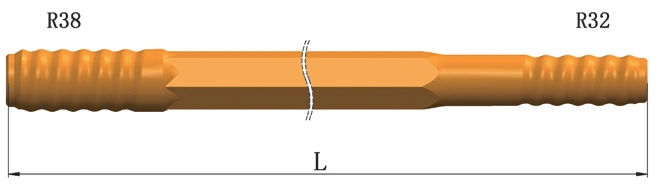

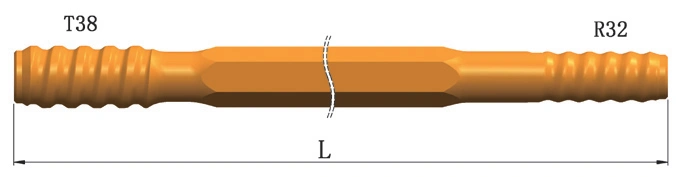

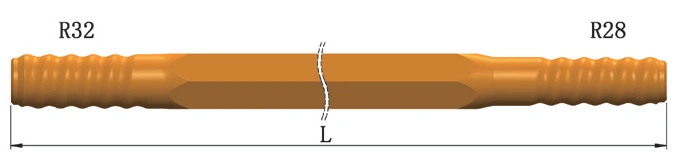

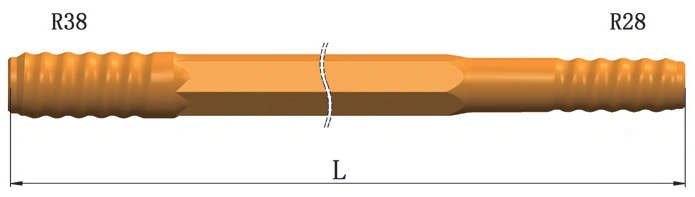

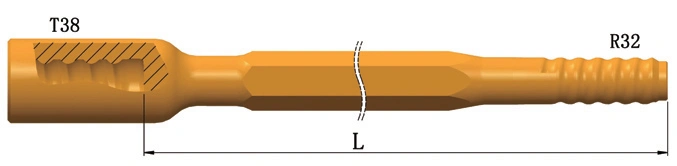

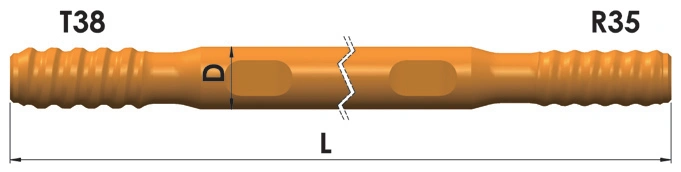

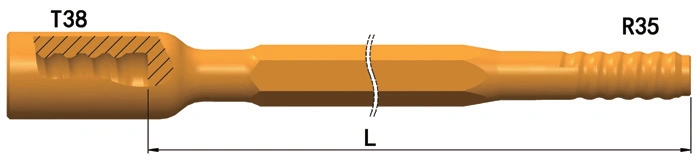

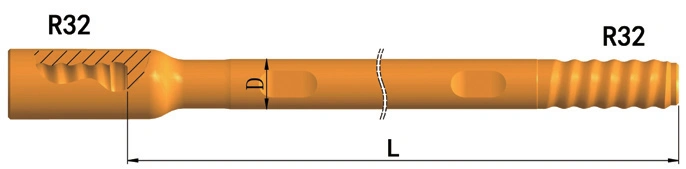

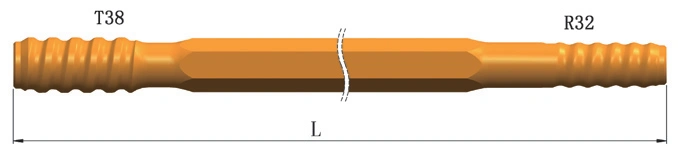

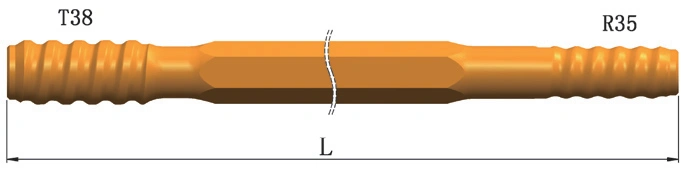

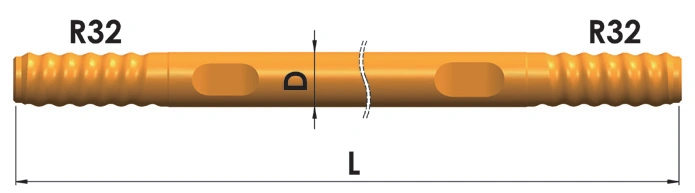

Drill Rods for Underground Mining
| Drifter rod | Length of drifter rod | Hex size | Weight, kg | ||
| mm | ft-in | mm | inch | ||
 |
2600 | 8'6 3/8" | 28 | 1 1/8" | 13 |
| 3090 | 10'1 5/8" | 28 | 1 1/8" | 15.9 | |
| 3700 | 12'1 5/8" | 28 | 1 1/8" | 18.5 | |
| 4005 | 13'1 43/64" | 28 | 1 1/8" | 20.5 | |
| 4265 | 13'11 1/2" | 28 | 1 1/8" | 21.3 | |
| 4305 | 14'1 31/64" | 28 | 1 1/8" | 21.5 | |
 |
3700 | 12'1 1/2" | 28 | 1 1/8" | 18.5 |
| 4305 | 14'1 31/64" | 28 | 1 1/8" | 21.5 | |
 |
3090 | 10'1 5/8" | 32 | 1 1/4" | 19.6 |
 |
3090 | 10'1 21/32" | 32 | 1 1/4" | 19.7 |
| 3700 | 12'1 1/2" | 32 | 1 1/4" | 23.6 | |
| 4305 | 14'1 31/64" | 32 | 1 1/4" | 27.3 | |
 |
3090 | 10'1 5/8" | 35 | 1 5/8" | 24 |
| 3700 | 12'1 1/2" | 35 | 1 5/8" | 28.7 | |
| 4305 | 14'1 31/64" | 35 | 1 5/8" | 33.7 | |
| 4915 | 16'1 1/2" | 35 | 1 5/8" | 38.2 | |
| 5525 | 18'1 33/64" | 35 | 1 5/8" | 43.1 | |
 |
3700 | 12'1 1/2" | 35 | 1 5/8" | 29.4 |
| 4305 | 14'1 31/64" | 35 | 1 5/8" | 34.4 | |
| 4915 | 16'1 1/2" | 35 | 1 5/8" | 38.9 | |
| 5525 | 18'1 33/64" | 35 | 1 5/8" | 43.8 | |
 |
3090 | 10'1 5/8" | 35 | 1 5/8" | 23.9 |
| 3700 | 12'1 1/2" | 35 | 1 5/8" | 28.6 | |
| 4305 | 14'1 31/64" | 35 | 1 5/8" | 33.6 | |
| 4915 | 16'1 1/2" | 35 | 1 5/8" | 38.3 | |
| 5525 | 18'1 33/64" | 35 | 1 5/8" | 43.2 | |
| 6135 | 20'1 1/2" | 35 | 1 5/8" | 47.9 | |
 |
3700 | 12'1 1/2" | 32 | 1 5/8" | 23.6 |
| 4305 | 14'1 31/64" | 32 | 1 5/8" | 27.5 | |
| 4915 | 16'1 1/2" | 35 | 1 5/8" | 31.4 | |
 |
3700 | 12'1 1/2" | 32 | 1 5/8" | 23.6 |
| 4305 | 14'1 31/64" | 32 | 1 5/8" | 27.5 | |
 |
4305 | 14'1 31/64" | 35 | 1 3/8" | 33.8 |
| 4915 | 16'1 1/2" | 35 | 1 3/8" | 38.4 | |
| 5525 | 18'1 33/64" | 35 | 1 3/8" | 43.3 | |
| 6135 | 20'1 1/2" | 35 | 1 3/8" | 48 | |
 |
4305 | 14'1 31/64" | 35 | 1 3/8" | 34 |
| 4915 | 16'1 1/2" | 35 | 1 3/8" | 38.6 | |
| 5525 | 18'1 33/64" | 35 | 1 3/8" | 43.5 | |
| 6135 | 20'1 1/2" | 35 | 1 3/8" | 48.2 | |
 |
4305 | 14'1 31/64" | 35 | 1 3/8" | 34.2 |
| 4915 | 16'1 1/2" | 35 | 1 3/8" | 39.2 | |
| 5525 | 18'1 33/64" | 35 | 1 3/8" | 44.3 | |
| 6135 | 20'1 1/2" | 35 | 1 3/8" | 49.3 | |

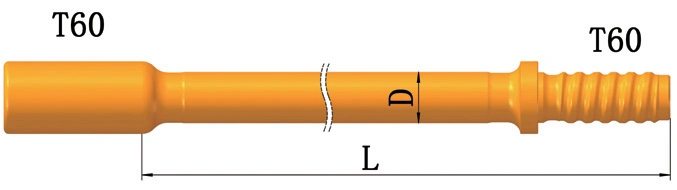

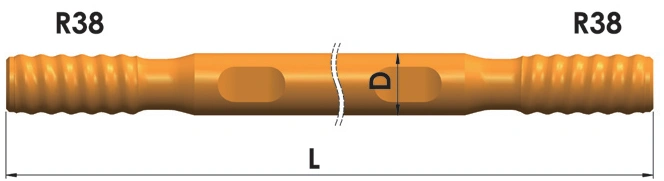

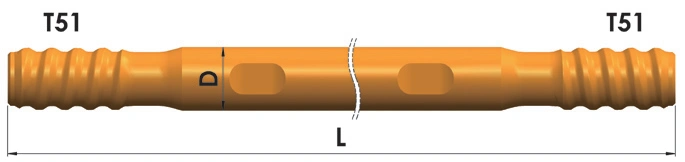

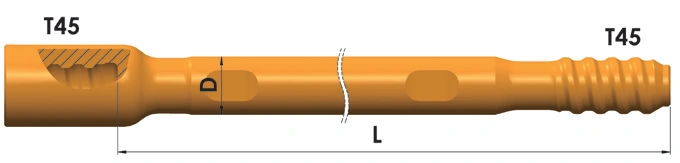

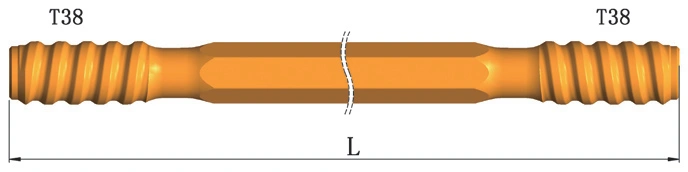

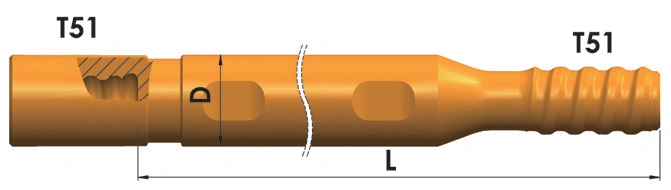

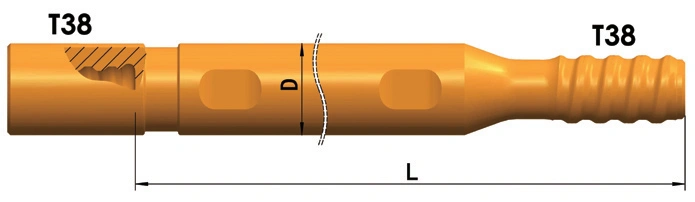

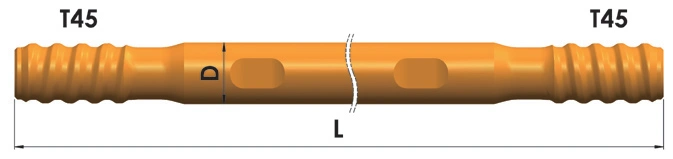

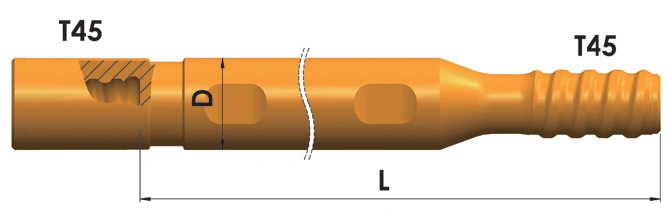

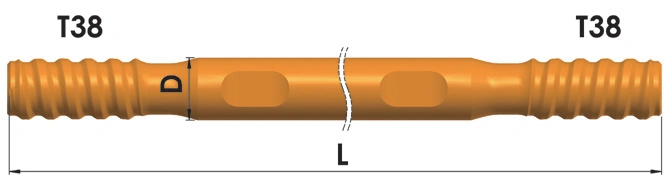

Drill Rods for Tunneling and Drifting
| Drifter rod | Length of drifter rod | Hex size | Weight, kg | ||
| mm | ft-in | mm | inch | ||
 |
2435 | 8" | 32 | 1 1/4" | 13.2 |
| 3050 | 10" | 32 | 1 1/4" | 16.6 | |
| 3660 | 12" | 32 | 1 1/4" | 20 | |
| 4000 | 13'1 1/2" | 32 | 1 1/4" | 21.9 | |
 |
2435 | 8" | 32 | 1 1/4" | 14.6 |
| 3050 | 10" | 32 | 1 1/4" | 18.6 | |
| 3660 | 12" | 32 | 1 1/4" | 21.1 | |
| 4265 | 14" | 32 | 1 1/4" | 25.6 | |
 |
3050 | 10" | 46 | 1 3/4" | 25 |
 |
2435 | 8" | 39 | 1 1/2" | 19.2 |
| 3050 | 10" | 39 | 1 1/2" | 24.3 | |
 |
3050 | 10" | 32 | 1 1/4" | 18.7 |
| 3660 | 12" | 32 | 1 1/4" | 22.4 | |
 |
3050 | 10" | 39 | 1 1/2" | 24.8 |
| 3660 | 12" | 39 | 1 1/2" | 29.8 | |
 |
3050 | 10" | 39 | 1 1/2" | 26.3 |
| 3660 | 12" | 39 | 1 1/2" | 31.5 | |
| 4265 | 14" | 39 | 1 1/2" | 36.9 | |
 |
3050 | 10" | 56 | 2 1/8" | 28.3 |
| 3660 | 12" | 56 | 2 1/8" | 32.8 | |
 |
3050 | 10" | 38 | 1 1/2" | 25.2 |
| 3660 | 12" | 38 | 1 1/2" | 30.4 | |
 |
3050 | 10" | 46 | 1 3/4" | 34 |
| 3660 | 12" | 46 | 1 3/4" | 41 | |
| 4265 | 14" | 46 | 1 3/4" | 47.9 | |
| 6095 | 20" | 46 | 1 3/4" | 68.9 | |
 |
3050 | 10" | 46 | 1 3/4" | 37.6 |
| 3660 | 12" | 46 | 1 3/4" | 43.5 | |
| 4265 | 14" | 46 | 1 3/4" | 51.5 | |
| 5335 | 17'6 1/8" | 46 | 1 3/4" | 61.8 | |
| 6095 | 20" | 46 | 1 3/4" | 70.6 | |
 |
3660 | 12" | 64 | 2 1/2" | 49 |
| 3660 | 12" | 76 | 3" | 77.8 | |
 |
3660 | 12" | 52 | 2" | 50.8 |
| 4265 | 14" | 52 | 2" | 59.5 | |
| 6095 | 20" | 52 | 2" | 85.6 | |
 |
3660 | 12" | 52 | 2" | 53.9 |
| 4265 | 14" | 52 | 2" | 62.6 | |
| 5335 | 17'6 1/8" | 52 | 2" | 77.7 | |
| 6095 | 20" | 52 | 2" | 88.8 | |
 |
3660 | 12" | 76 | 3" | 79.1 |
| 3660 | 12" | 87 | 3 1/2" | 80 | |
 |
3660 | 12" | 60 | 2 3/8" | 73 |
| 4265 | 14" | 60 | 2 3/8" | 82 | |
| 6095 | 20" | 60 | 2 3/8" | 110 | |
