Reverse Circulation Drilling Tools for Accurate Sampling

Rock Drilling Tools

Reverse Circulation Drilling Tools

RC drilling tools

Component Display of the Integrated DTH System

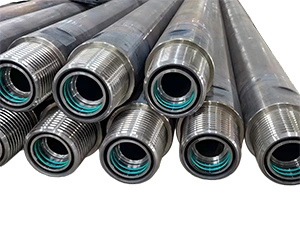

Reverse Circulation Drill Pipes

Pipe diameter range: 89-127mm
Thread types: REMET, METZKE
Material: Low-carbon alloy steel

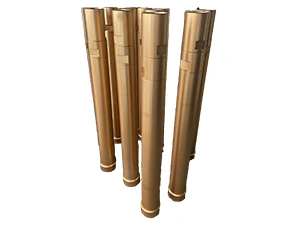

Reverse Circulation Hammers

Hammer diameter range: 85-285mm
Thread connection: REMET, METZKE
Material: Low-carbon alloy steel

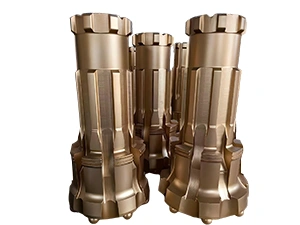

Reverse Circulation Drill Bits

Bit diameter range: 90-400mm
Thread connection: REMET, METZKE, API REG
Face design: center-drop face, concave face

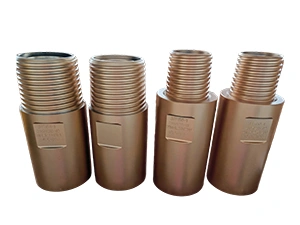

Reverse Circulation Connection Adapters

Reverse circulation connection adapters are primarily used to connect the drilling rig to drill pipes, drill pipes to RC hammers, and to interface drill strings with different thread types.

Need help finding the right product? Explore the applications serviced by us.

Geological exploration Mineral resource exploration, sampling and analysis

Drilling Water wells, geothermal wells, oil wells, coalbed methane, shale gas

Mining Open-pit blast holes, production drilling, underground mining

Foundation construction Bridges, high-rise buildings, port and harbor piling foundations

One-Stop Rock Drilling Solutions for Your Projects

We offer a complete range of drilling tools, drill rigs and related equipment for various projects, including mining, construction, water well drilling and more.

Rock Drilling Tools A complete range of rock drilling tools designed for mining, drilling, and construction projects. The portfolio includes DTH, top hammer, reverse circulation, casing systems, drill rods, and couplings, supporting one-stop equipment matching and reliable performance in complex conditions.

Drill RigsComprehensive mining equipment covering surface drill rigs and underground drill rigs for mining, tunneling and construction. Designed for high efficiency, safety and adaptability across diverse geological conditions and mining environments.

Air CompressorsAir compressors designed for drilling, mining, and construction applications. Including portable diesel compressors, portable electric compressors, and stationary electric screw compressors, providing stable, efficient, and reliable air supply for various working conditions.

How is high recovery rate and sample integrity ensured?

All reverse circulation drilling tools adopt a dual-wall circulation system combined with a reliable sealing structure. Drill cuttings, rock chips and gravel samples are transported directly through the inner tube to the surface collection system without contamination. Sample recovery rate: ≥98% with minimal sample loss and dilution, suitable for geological exploration and environmental sampling requiring high data reliability

How is pipe blockage handled during drilling? Are RC drill bit wear parts easy to replace?

RC drill bits are designed with large-volume cuttings passages to maintain smooth circulation. In case of blockage, reverse blowing or flushing can be applied to quickly restore drilling efficiency. Wear parts such as carbide inserts and protection plates are modular and field-replaceable. The drill bit is designed with quick disassembly and replacement to reduce downtime, designed for continuous operation in abrasive and mixed formations.
