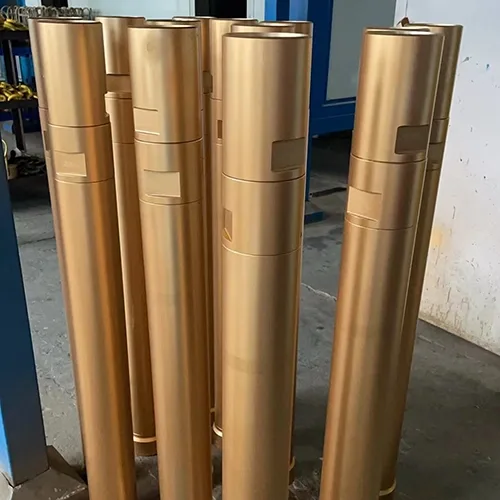

Reverse Circulation Hammers for Geological Sampling

Rock Drilling Tools

Reverse Circulation Hammers

Hammer diameter range: 85-285mm
Thread connection: REMET, METZKE
Material: Low-carbon alloy steel

Request a Quote

Downloads

Typical Applications

RC hammers are widely used in projects requiring high sampling accuracy and controlled drilling performance.

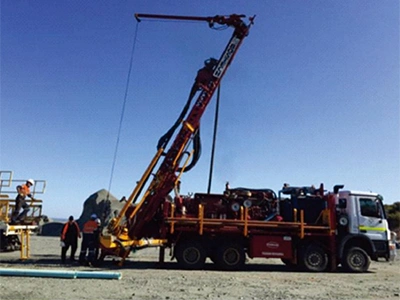

Water well drilling

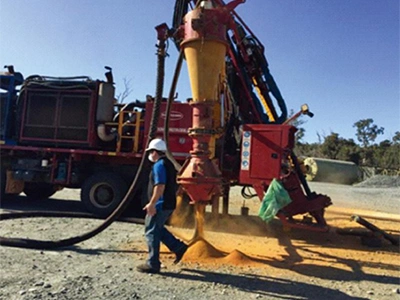

Geological sampling

Technical Specifications

Model	Outer diameter, mm
PWD-003	85
PWD-004	108
PWD-543	116
PWD-545	117
PWD-040	121
PWD-052	126
PWD-054	130
PWD-060	148
PWD-080	185
PWD-120	285

Custom manufacturing available based on drawings or samples.
OEM branding supported; alternative colors available upon request.

Key Advantages

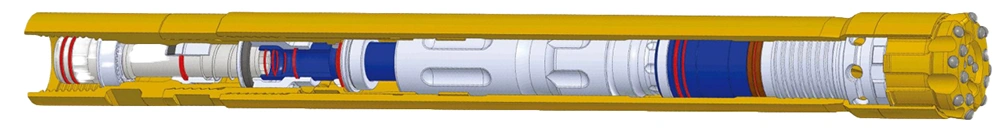

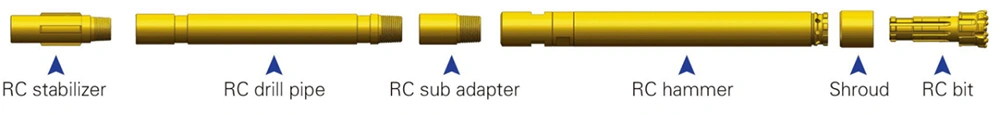

Integrated outer sleeve design: The hammer is equipped with an external casing sleeve, effectively preventing drill bit drop-off and improving operational stability.
Sealed dual-wall circulation structure: Enclosed dual-wall design ensures high energy utilization efficiency, strong cuttings evacuation capacity, and effective borehole wall protection.
Inner-tube cuttings transport: Drill cuttings are conveyed through the inner tube directly to the surface, enabling centralized handling and accurate identification of formation changes.

Related Products
Other Products

Drill Rigs Comprehensive mining equipment covering surface drill rigs and underground drill rigs for mining, tunneling and construction. Designed for high efficiency, safety and adaptability across diverse geological conditions and mining environments.

Air Compressors Air compressors designed for drilling, mining, and construction applications. Including portable diesel compressors, portable electric compressors, and stationary electric screw compressors, providing stable, efficient, and reliable air supply for various working conditions.

How can it be determined whether a DTH hammer has reached the end of its service life?

A DTH hammer is generally considered to be approaching the end of its service life when one or more of the following conditions are observed:

A significant increase in air consumption from the compressor, accompanied by a noticeable drop in operating pressure
Reduced impact force, resulting in weakened rock-breaking performance and lower drilling efficiency
Severe external wear, particularly when the wrench flats on the hammer connections are worn nearly smooth

How are the products packaged for delivery?

Standard packaging is provided using fumigation-free plywood crates. This packaging method is suitable for sea freight, air freight, and long-distance international transportation, ensuring safe handling and delivery.
