Concentric Casing Drilling System with Sliding Blocks

Rock Drilling Tools

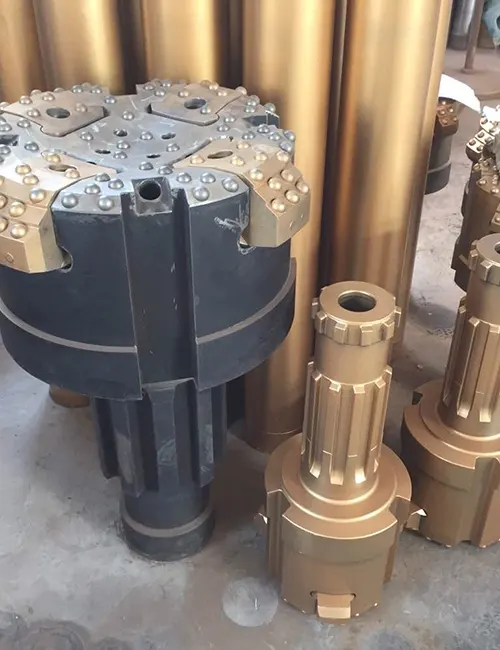

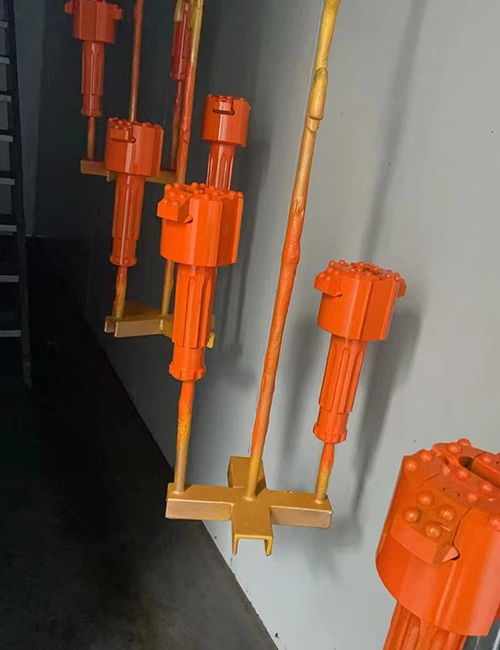

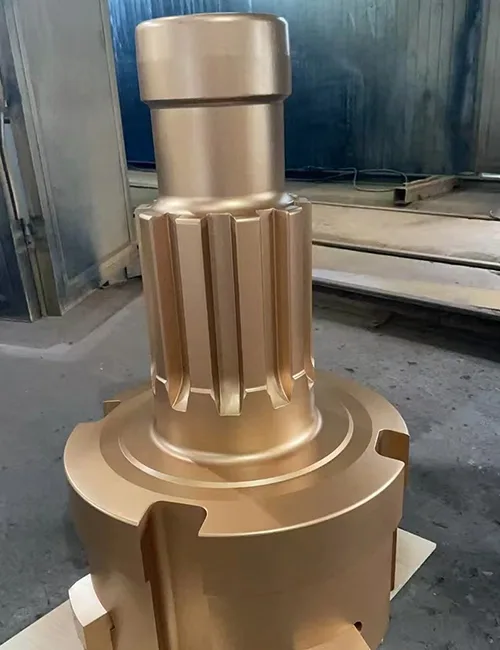

Concentric Casing Drilling System with Blocks

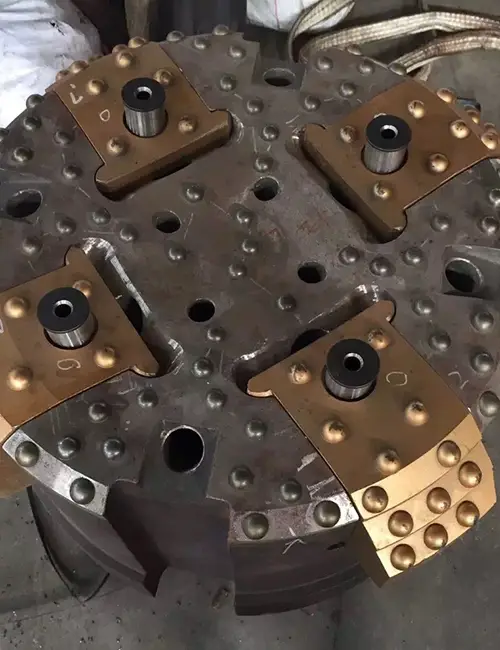

The rear surface of the sliding blocks is designed with guiding geometry, providing effective guidance during pull-out and enabling smooth and easy retrieval.
The sliding blocks are designed with a large inclined angle in the rotation direction, improving overall drilling stability.
The casing coupling is manufactured from higher-grade material than the casing itself and subjected to heat treatment, ensuring reliable and secure connections.
The casing shoe is heat-treated to significantly extend service life.
Both the sliding blocks and locking system are reinforced, delivering excellent overall mechanical performance.

Request a Quote

Typical Applications

Foundation piling projects, slope stabilization works, and drilling projects.

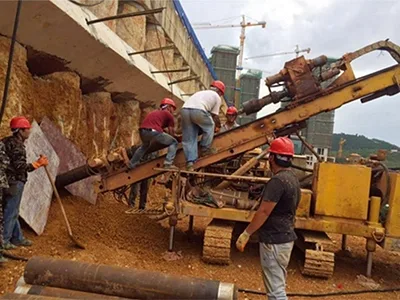

Slope stabilization

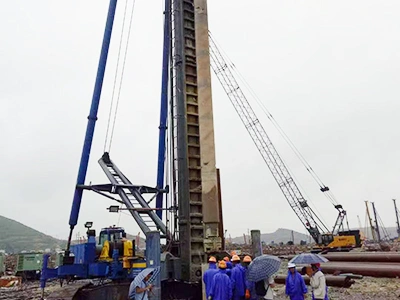

Pile foundation

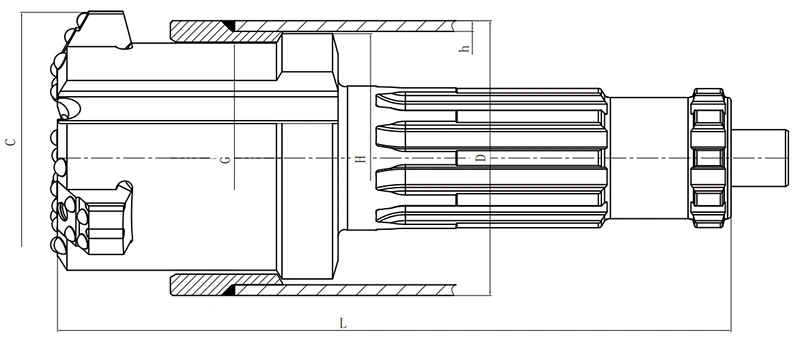

Technical Specifications

Model	O.D. of casing tube, mm	I.D.of casing tube, mm	Thickness, mm	Max. O.D. of pilot bit, mm	O.D. of ring bit, mm	Max. O.D. of common bit, mm	No. of blocks	DTH Hammer	Weight, kg
Model	D	I.D.of casing tube, mm	h	H	C	G	No. of blocks	DTH Hammer	Weight, kg
T185	219	199	10	196	234	185	3	6''	61
T210	245	225	10	222	260	210	3	8''	88
T240	273	253	10	251	305	240	3	8''	97
T280	325	305	10	302	346	282	3	8'' or 10''	115
T305	355	335	10	332	376	305	3	12''	214
T360	406	382	12	380	432	360	4	12''	254
T412	460	436	12	434	485	412	4	14''	415
T432	480	454.6	12.7	450	505	432	4	14''	415
T454	508	482.6	12.7	479	534	454	4	18''	630
T510	560	534.6	12.7	530	590	510	4	18''	730
T551	610	584.6	12.7	582	639	551	4	18''	895
T600	660	632	14	628	684	600	4	18'' or 24''	946
T645	711	679	16	675	741	645	4	24''	1210
T694	762	730	16	726	800	694	4	24''	1595
T750	813	781	16	776	845	752	6	24''	2436
T850	914	882	16	878	966	850	6	28''	2756
T950	1016	984	16	980	1060	956	6	28''	3076

(For systems used with hammers below 14 inches, Atlas Copco DHD series hammers are commonly selected. For sliding block casing systems used with hammers of 14 inches and above, NUMA series hammers are typically recommended. Sliding block casing systems compatible with other pneumatic DTH hammers can also be customized.)

Related Products
Other Products

Drill Rigs Comprehensive mining equipment covering surface drill rigs and underground drill rigs for mining, tunneling and construction. Designed for high efficiency, safety and adaptability across diverse geological conditions and mining environments.

Air Compressors Air compressors designed for drilling, mining, and construction applications. Including portable diesel compressors, portable electric compressors, and stationary electric screw compressors, providing stable, efficient, and reliable air supply for various working conditions.

Why choose a sliding block casing drilling system?

When large borehole diameters are required, conventional drilling tools are often unable to meet design and operational requirements.
In foundation piling projects, formations are often hard and complex, with karst cavities and varying rock hardness at different orientations.
For large-diameter drilling under such conditions, sliding block casing systems become the preferred casing solution, offering lower operating costs compared to concentric casing systems.

What are the advantages of sliding block casing drilling systems?

The entire bottom face is equipped with carbide inserts, greatly enhancing primary rock-breaking capability. The extended sliding blocks are also fully fitted with carbide inserts, ensuring thorough rock fragmentation along the borehole wall, resulting in relatively high penetration rates.
