Concentric Casing Drilling System with Foot-Wings

Rock Drilling Tools

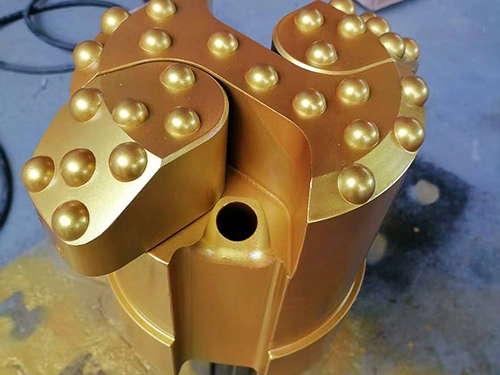

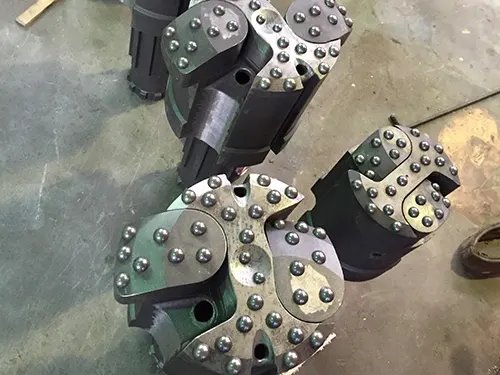

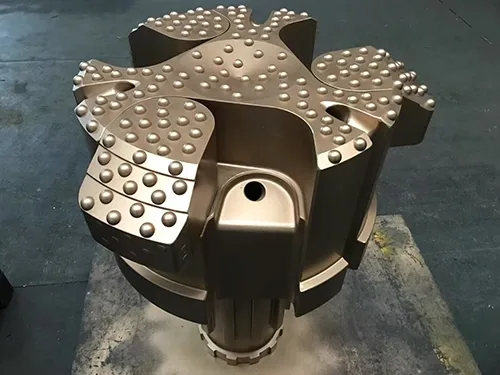

Concentric Casing Drilling System with Foot-Wings

Compared with other concentric casing drilling systems, this design significantly improves cuttings evacuation efficiency and flow capacity.
During drilling operations, borehole verticality is superior to that achieved with eccentric casing systems.
Suitable for large-diameter casing advancement drilling applications.

Request a Quote

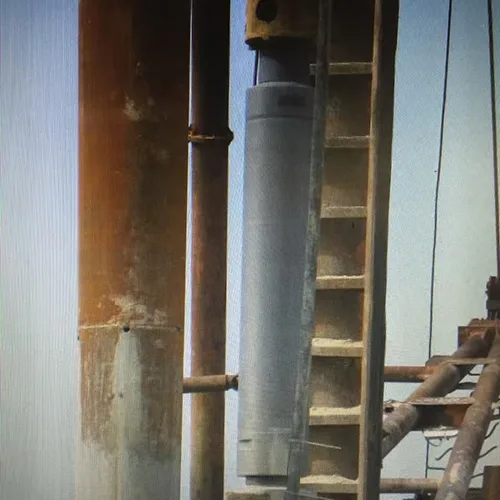

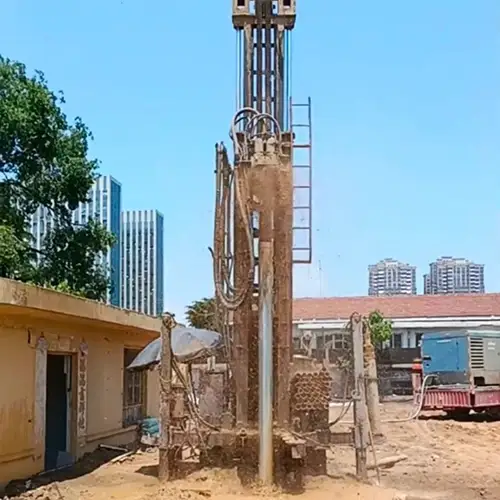

Typical Applications
