Casing Shoes for Casing-Supported Drilling Systems

Rock Drilling Tools

Casing Shoes

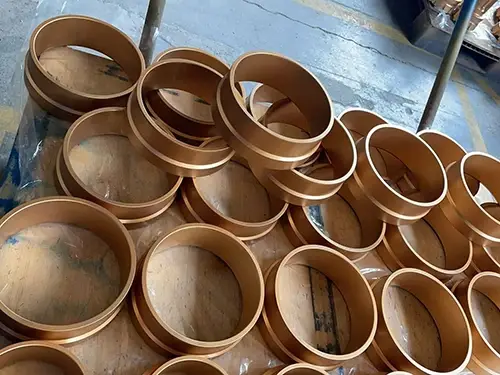

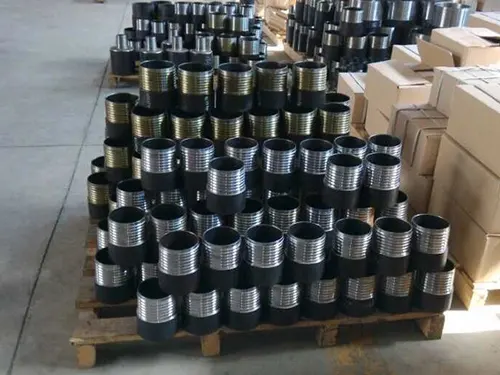

Casing shoes are designed for casing-supported drilling operations to stabilize borehole walls in foundation piling and water well projects. Manufactured from low-carbon alloy steel with precision machining and heat treatment, they provide high strength, wear resistance, and reliable performance in demanding drilling conditions.

Request a Quote

Downloads

Typical Applications

Widely used in various casing-supported drilling operations for borehole wall stabilization.

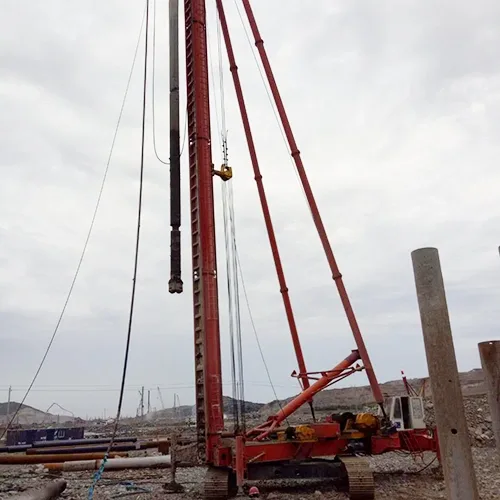

Foundation piles

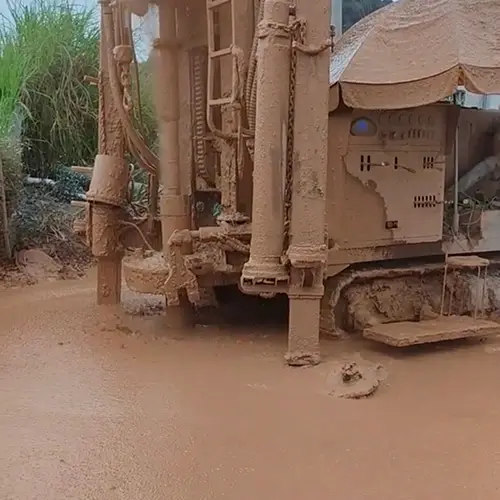

Water well drilling

Technical Specifications

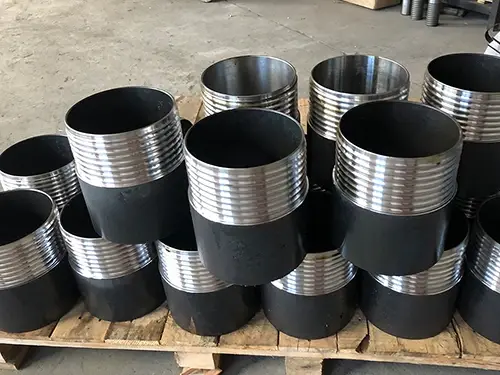

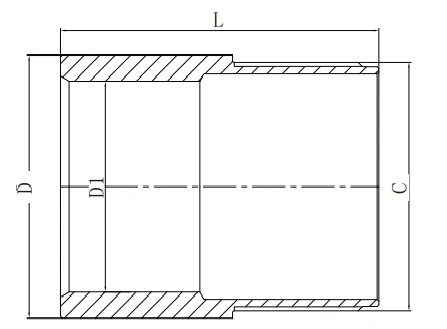

Threaded Casing Shoes

O.D. of casing tube, mm	O.D. of casing shoe, mm	Min. I.D. of casing shoe, mm	Casing tube thickness, mm	Weight, kg
O.D. of casing tube, mm	D	D1	Casing tube thickness, mm	Weight, kg
108	108	86	7	2.4
114	114	91	6.5	3
127	127	99.5	9.5	3.3
146	146	117	10	4.4
168	168	138	10	6.2
178	178	148	10	7.5
183	183	153	10	8.6
194	194	162	10	8.8
219	219	187	10	12.8
245	245	210	10	13.5
273	273	241	10	15
L (length) and C (Thread model) of casing shoe can be customized.

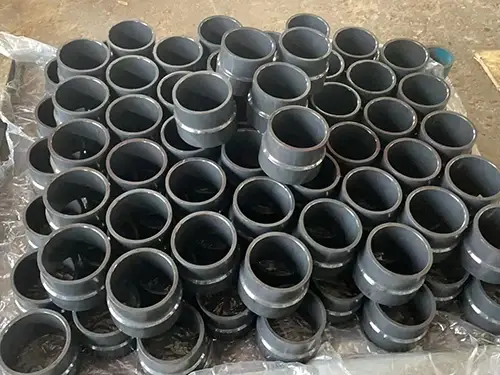

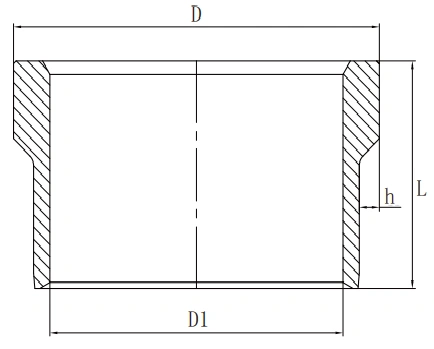

Welded Casing Shoes

O.D. of casing tube, mm	O.D. of casing shoe, mm	Min. I.D. of casing shoe, mm	Casing tube thickness, mm	Weight, kg
O.D. of casing tube, mm	D	D1	h	Weight, kg
108	108	86	7	1.6
114	114	91	6.5	2.5
127	127	99.5	9.5	3
146	146	117	10	3.8
168	168	138	10	5
178	178	148	10	6
183	183	153	10	7.5
194	194	162	10	7.8
219	219	187	10	10
245	245	210	10	12
273	273	241	10	13.5
325	325	282	12.5	16
L (length) of casing shoe can be customized.
