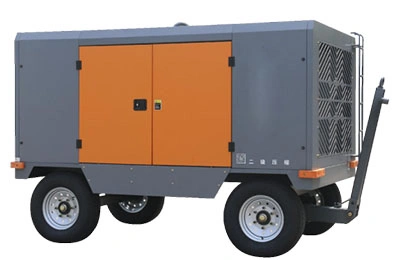

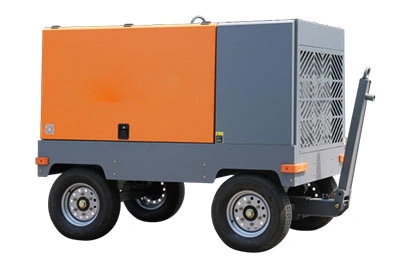

Portable Electric Screw Compressor

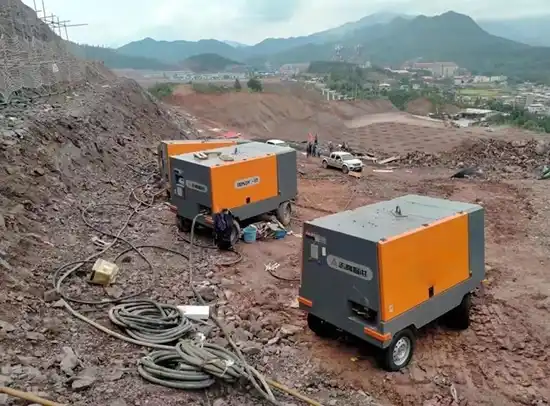

Mobile air compressors designed for drilling, mining and construction sites with available power supply
We offer a complete range of portable single-screw and twin-screw electric compressors with power ratings from 75kW to 315kW. Compared with stationary compressors, portable electric models provide greater mobility, allowing relocation without the need for auxiliary lifting or transport equipment with low noise level (lower than 85dB).
Request a Quote
Single-stage Screw Compression (75-90kW)
| Model | | | |
| Air end | Single-stage compression | ||
| Type | Four-wheel | ||
| Motor protection class | IP54 | ||
| Rated pressure | 8bar | 8bar | 14.5bar |
| Rated FAD | 13.2m³/min | 15.5m³/min | 13m³/min |
| Motor power | 75kW | 90kW | 90kW |
| Weight | 2020kg | 2125kg | 2120kg |
| Dimensions (L x W x H) | 3050x1620x2090mm | ||
Two-stage Screw Compression (90-315kW)
| Model | Air end | Type | Motor protection class | Rated pressure | Rated FAD | Motor power | Weight | Dimensions (L x W x H) |
| Two-stage compression | Four-wheel | IP54 | 12bar 12bar | 17m³/min | 90kW | 2350kg | 3050x1620x2090mm | |
| 24m³/min | 132kW | 2900kg | 3250x1760x2175mm | |||||
| 18bar | 13m³/min | 90kW | 2350kg | 3050x1620x2090mm | ||||
| 18bar | 16m³/min | 110kW | 2650kg | 3250x1760x2175mm | ||||
| | 19bar | 21m³/min | 132kW | 2850kg | ||||
| 19bar | 26m³/min | 185kW | 3850kg | 3680x1920x2375mm | ||||
| 18bar | 27.5m³/min | 220kW Variable frequency (Optional) | 5500/5550kg | 4180x2180x2500mm | ||||
| 18bar | 31.3m³/min | 250kW Variable frequency (Optional) | 5750/5800kg | |||||
| 19bar | 35m³/min | 280kW Variable frequency (Optional) | 6000/6050kg | |||||
| 19bar | 40m³/min | 315kW Variable frequency (Optional) | 6300/6350kg | |||||
| 24bar | 23m³/min | 185kW | 4100kg | 3960x1920x2375mm | ||||
| 24bar | 26.5m³/min | 220kW Variable frequency (Optional) | 5500/5550kg | 4180x2080x2500mm | ||||
| 24bar | 30.5m³/min | 250kW Variable frequency (Optional) | 5750/5800kg | |||||
| 24bar | 34.5m³/min | 280kW | 6000/6050kg | 3960x1920x2375mm | ||||
| 24bar | 39m³/min | 315kW | 6300/6350kg | 4180x2080x2500mm |
