Crawler Solar Piling Drill Rigs for Foundation Work

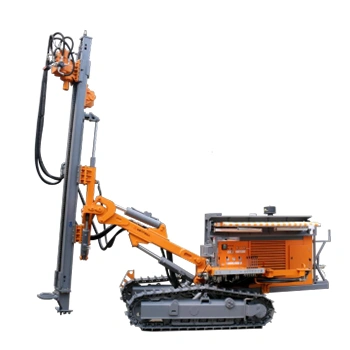

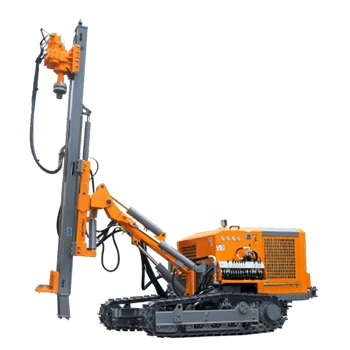

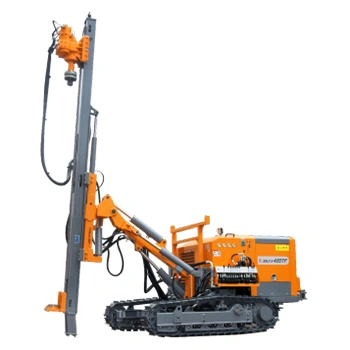

Solar Piling Drill Rig

Crawler-mounted drill rig for solar piling and foundation drilling applications

Request a Quote

High speed: 140r/min, Torque 4000N·m
Low speed: 70r/min, Torque 8000N·m

Emission standard	China II (MTO)	China III	China IV
Model	Yuchai YC4A100	Yuchai YC4DK100	Yuchai YCF36100
Rated power	70 kW	73.5 kW	74 kW
Features	Enhanced drilling boom and feeding system	Hydraulic winch standard on 420TF / 430TF	Hydraulic winch optional on 430GF

Technical Specifications

Model	420TF	430TF	430GF
Weight	5000kg	5920kg	7000kg
Dimensions (L x W x H)	5600x2308x2500mm	6000x2306x2500mm	7000x2300x2800m
China IV engine (standard)	Yuchai / 74kW
Max. rotation torque	5000N·m	8000N·m	8000N·m
Drilling hole diameter	Ø110-250mm	Ø110-350mm	Ø110-350mm
DTH hammer (standard)	4''	Configurable
Drilling rod	Ø76x3000mm	Configurable
Diesel tank volume	70L	70L	156L

Ready to start a project?

Talk or write to our experts to find your best drilling solution.

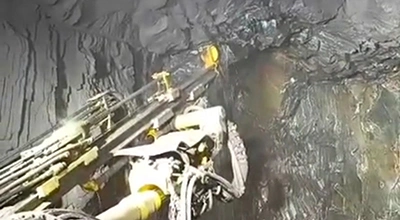

Rock Drilling Tools A complete range of rock drilling tools designed for mining, drilling, and construction projects. The portfolio includes DTH, top hammer, reverse circulation, casing systems, drill rods, and couplings, supporting one-stop equipment matching and reliable performance in complex conditions.

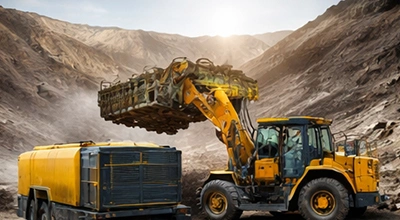

Air Compressors Air compressors designed for drilling, mining, and construction applications. Including portable diesel compressors, portable electric compressors, and stationary electric screw compressors, providing stable, efficient, and reliable air supply for various working conditions.
