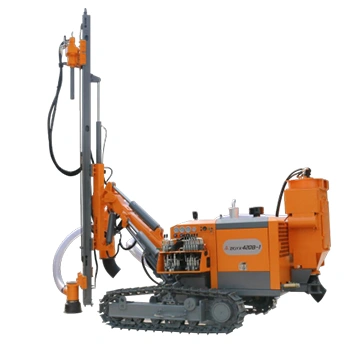

Separated DTH Surface Drill Rig: ZGYX-412B-1 / 416T-1 / 420B-1
Max. hole diameter: Ø90 / Ø115mm
DTH Surface Drill Rig
DTH Surface Drill Rig
Recommended Air Compressors

Electric Portable Screw Compressors: 90SDY-14.5, 90SDYT-18
Diesel Portable Screw Compressors: 110SCYT-18, 141SCY-15, 145SCYT-18

Emission standard China II (MTO) China III China IV
Model Yuchai YC4D80 Yuchai YC4DK80 Yuchai YCF3680
Rated power 56kW 58kW 59kW
Technical Specifications
Model 412B-1 416T-1 420B-1
Weight 3950kg 4620kg 4620kg
Dimensions (L x W x H), mm 4450x2080x2460 5700x2130x2300 5700x2130x2300
China IV engine (standard) Yuchai / 59 kW
Max. rotation torque 1650N·m 2200N·m 2200N·m
Drilling hole diameter Ø90-115mm Ø90-115mm Ø90-127mm
DTH hammer (standard) 3.5'' 3.5'' 3.5'' / 4''
Drilling rod Ø60x2000mm Ø60x3000mm Ø60x3000mm
Diesel tank volume 115L 70L 70L

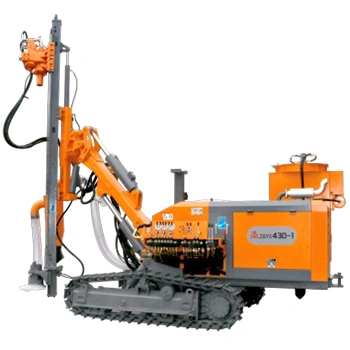

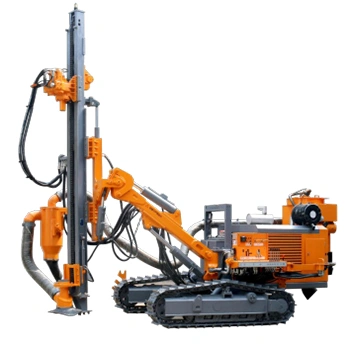

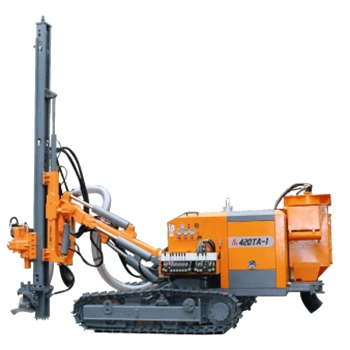

Separated DTH Surface Drill Rig: ZGYX-420TA-1 / 425-1 / 430-1
Max. hole diameter: Ø115 / Ø138mm
DTH Surface Drill Rig
DTH Surface Drill Rig
DTH Surface Drill Rig
Recommended Air Compressors

Electric Portable Screw Compressors: 110SDYT-18, 132SDYT-18
Diesel Portable Screw Compressors: 162SCYT-18, 186SCYT-18, 198SCYT-20

Emission standard China II (MTO) China III China IV
Model Yuchai YC4A100 Yuchai YC4DK100 Yuchai YCF36100
Rated power 70kW 73.5kW 74kW
Technical Specifications
Model 420TA-1 425-1 430-1
Weight 5550kg 6230kg 6440kg
Dimensions (L x W x H), mm 5600x2308x2500 7000x2250x2700 7120x2450x3540
China IV engine (standard) Yuchai / 74kW
Max. rotation torque 3200N·m 3200N·m 3500N·m
Drilling hole diameter Ø90-138mm Ø90-138mm Ø115-152mm
DTH hammer (standard) 3.5'' / 4'' / 5'' 3.5'' / 4'' / 5'' 3.5'' / 4'' / 5''
Drilling rod Ø76x3000mm Ø76x3000mm Ø76x3000mm
Diesel tank volume 70L 80L 110L

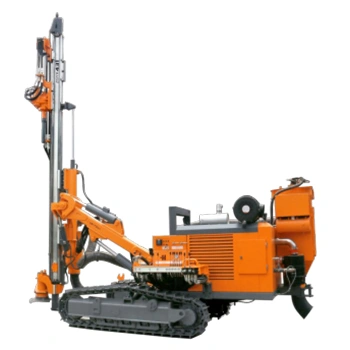

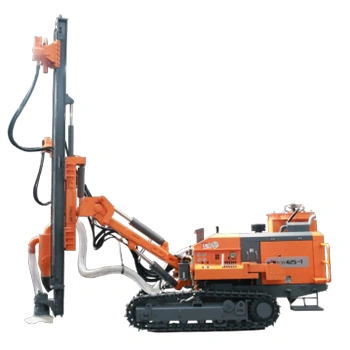

Separated DTH Surface Drill Rig: ZGYX-431 / 845-1
Max. hole diameter: Ø138 / Ø152mm
DTH Surface Drill Rig
DTH Surface Drill Rig
Recommended Air Compressors

Electric Portable Screw Compressors: 132SDYT-18, 185SDYT-24
Diesel Portable Screw Compressors: 220SCYT-22, 298SCYT-24

Emission standard China II (MTO) China III China IV
Model Yuchai YC4A100 Yuchai YC4DK100 Yuchai YCF36100
Rated power 70kW 73.5kW 74kW
Technical Specifications
Model 431 845-1
Weight 7340kg 7460kg
Dimensions (L x W x H), mm 7000x2300x2800
China IV engine (standard) Yuchai / 74kW
Max. rotation torque 3500N·m
Drilling hole diameter Ø115-152mm Ø115-165mm
DTH hammer (standard) 4'' / 5'' 4'' / 5'' / 6''
Drilling rod Ø76x3000mm Ø76x3000mm
Diesel tank volume 156L
